Joint Orientations Overview

Joint plane orientations must intersect the slope planes in a kinematically admissible manner, such that a block is formed which is capable of being removed from the slope.

RocSlope2 automatically performs a Combination Analysis and considers all possible combinations of joints which can form a block. The combinations of joints considered can be from a single list or multiple sets of joint data.

If you are using the Basal Joint option for Wedge Analysis, an additional Basal joint set will be added.

To define the Joint Orientations:

  1. Select Home > Joints > Orientations
  2. The Define Joint Orientation dialog will open. The Joint Orientation dialog consists of the following settings and options:

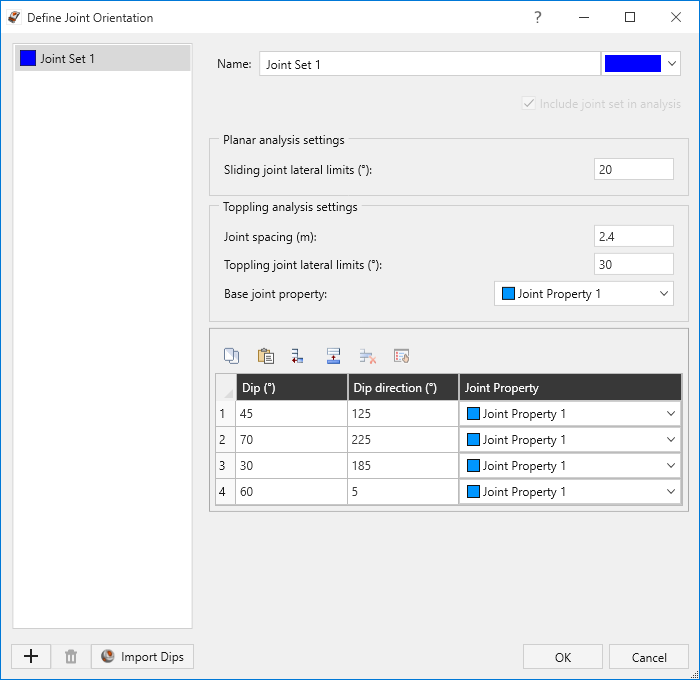

Define Joint Orientation dialog
Define Joint Orientation dialog

For a Probabilistic Analysis, it is possible to define statistical variability of the joint plane orientations. See the Joint Orientation Statistics topic for more information.

Joint Sets

By default, RocSlope2 considers a single joint set for block formation. Additional sets can be added to allow for the combination of multiple sets of joints with one another.

Joint sets in the Define Joint Orientation dialog can be manually included/excluded from the analysis by toggling the Include joint set in analysis checkbox.

One joint set must be included in the analysis at all times. RocSlope2 does not allow the last remaining joint set to be excluded from the analysis if you have multiple joint sets defined.

Single Joint Set

When a single joint set is used in the analysis, RocSlope2 handles the joint combinations in the following ways:

For Wedge blocks, combinations of any two joints from the set are used to form blocks.

For Planar blocks, all possible joints within the Sliding Lateral Limits are considered. Similarly, for Toppling blocks, all possible joints within the Toppling Lateral Limits are considered.

Additional Joint Sets

Within the Define Joint Orientation dialog, the joint sets are listed along the left-side menu. Joint sets can be managed using the buttons along the bottom-left of the dialog:

  • Add Add Icon a new joint set.
  • Delete Delete Icon an existing joint set.
  • Import Dips joint set(s). See the Import Dips topic for more details.

Additionally, when Block Shape is set to Basal Joint, a Basal Joint Set will be automatically added to the joint sets list enabled for editing.

A Basal joint set cannot be deleted in the Define Joint Orientations dialog, be excluded from the analysis, or have its name changed.

For Wedge analysis, a combination of one joint from each set and one joint from other sets are considered.

For Planar and Toppling analyses, all joints from all sets which fall within their respective lateral limits are considered. See the Planar and Toppling Analysis Settings topics for more information on lateral limits.
