Stereonet View

RocSlope2 enables users to view the stereographic projection of their planes using the Stereonet View. Users can view Stereonets for individual blocks, or display results from all the Analysis Methods in a single Stereonet.

To access the Stereonet View:

1. Select Home > Stereonet > Open
2. The Stereonet View will open in a window. You can access all of your open windows using the tabs below the ribbon menu.

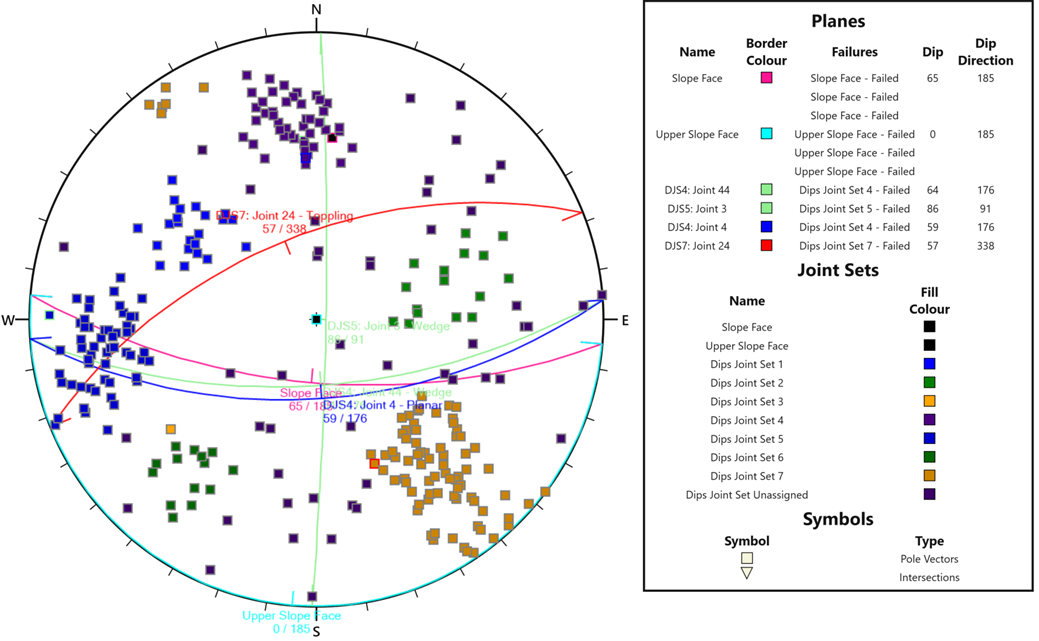

   • The Stereonet View will update dynamically as different blocks are selected from the Results Grid in each of the Analysis Windows.

   • Failed poles are colour-coded in red.

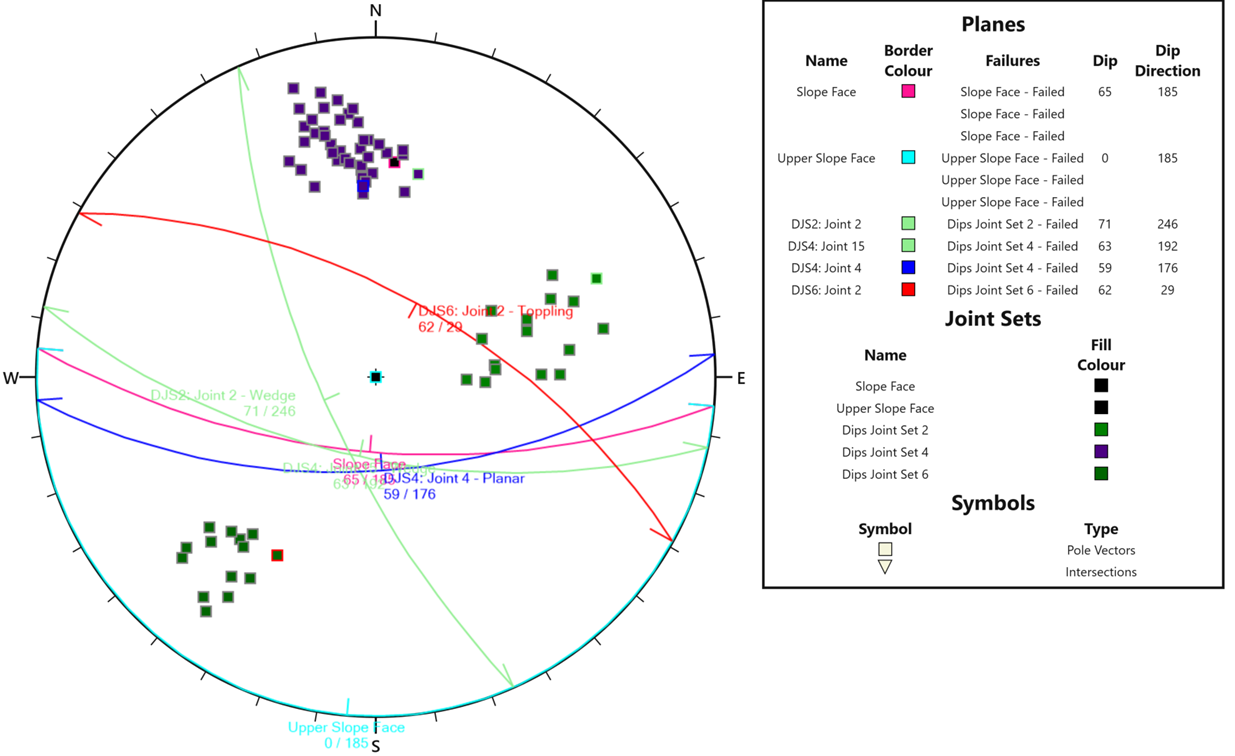

   • The Stereonet View will correspond to the last active Analysis Window, for example, if the Stereonet View is opened from the All Analyses view, it will depict all three Analysis Methods, as seen in the image below.
3. To close the Stereonet View, select Home > Current View > Close while the Stereonet window is active.

Right-Click Options

There are many options available if you right-click on the Stereonet view.

• Show Planes
• Show Poles
• Show Intersections
• Show Failures
• Equal Angle Projection
• Equal Area Projection
• Lower Hemisphere
• Upper Hemisphere
• Show Legend
• Show Grid Lines
• Copy to Clipboard
• Stereonet Display Options
