Advanced Groundwater
On the Groundwater page of the Project Settings dialog, the following advanced groundwater options can be enabled:
- Excess Pore Pressure
- Rapid Drawdown

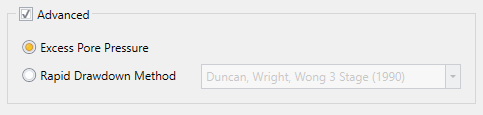

To enable one of the advanced groundwater options, select the Advanced checkbox and choose an option. Only ONE option can be selected, it is not possible to run more than one advanced groundwater option simultaneously. The advanced groundwater options are summarized below.
Excess Pore Pressure
The Excess Pore Pressure option allows you to use the B-bar method to calculate excess pore pressure due to undrained loading. The B-bar method allows you to account for sudden increases in pore pressure due to rapidly applied loading conditions. These loading conditions may include:
- added material weight
- vertical seismic loading
- vertical external loading
When you select the Excess Pore Pressure option, you will be able to define B-bar coefficients for materials in the Material Properties dialog. Excess pore pressure is equal to the B-bar coefficient multiplied by the change in vertical stress. The change in vertical stress can be due to any of the above loading conditions. See the Excess Pore Pressure topic for more information.
Rapid Drawdown Analysis
The Rapid Drawdown option allows you to analyze the stability of earth dams under rapid drawdown conditions, using one of four methods:
- Duncan, Wright, Wong, 3 stage (1990)
- Army Corps of Engineers, 2 stage (1970)
- Lowe and Karafiath (1960)
- Effective Stress using B-bar
For all methods, an initial water level is specified by defining a Water Table. A second water table (Drawdown Surface) defining the drawdown level can also be specified, or you can assume complete drawdown. The pore pressure is then calculated according to the drawdown method, and the safety factor for rapid drawdown conditions is calculated. For a tutorial which demonstrates these options, see the Slide3 Tutorials page.
Undrained Strength Interpolation Scheme
If you are using the Rapid Drawdown option, and you are using either the Duncan, Wright, Wong, 3 stage (1990) method or the Lowe and Karafiath (1960) method, then you can choose one of the following Strength Interpolation methods:
- Duncan, Wright, Wong (1990)
- VandenBerge, Wright (2016)
