9 - Basal Joint

1.0 Introduction

This tutorial demonstrates how to include a third joint (Basal Joint) in the SWedge analysis. This allows you to model pentahedral (five-sided) sliding blocks, defined by three intersecting joint planes and the slope surface.

Topics Covered in this Tutorial:

  • Block Shape
  • Basal Joint
  • Tension Crack

Finished Product:

The finished product of this tutorial can be found in the Tutorial 09 Basal Joint.swd7 file, located in the Examples > Tutorials folder in your SWedge installation folder.

2.0 Creating a New File

  1. If you have not already done so, run the SWedge program by double-clicking the SWedge icon in your installation folder or by selecting Programs > Rocscience > SWedge > SWedge in the Windows Start menu.

When the program starts, a default model is automatically created. If you do NOT see a model on your screen:

  1. Select: File > New new

Whenever a new file is created, the default input data forms valid slope geometry, as shown in the image below.

Default SWedge model forming valid slope geometry
Default SWedge model forming valid slope geometry

If the SWedge application window is not already maximized, maximize it now so that the full screen is available for viewing the model.

Notice the four-pane, split-screen format of the display, which shows the Top, Front, Side and Perspective views of the model. This view is referred to as the Wedge View. The Top, Front and Side views are orthogonal with respect to each other (i.e., viewing angles differ by 90 degrees.)

3.0 Model

3.1 PROJECT SETTINGS

Let's start by setting up the project in the Project Settings dialog.

  1. Select: Analysis > Project Settings project settings
  2. In the General tab, change Block Shape to Basal Joint.
    The default setting of Wedge refers to tetrahedral wedges formed by the intersection of two joint planes.
  3. Click OK.
Model Project Settings dialog
Model Project Settings dialog

The default tetrahedral wedge model now has an additional plane along the bottom of the wedge. This additional plane is referred to as the Basal Joint.

Basal Joint
Basal Joint

If you slide the wedge out of the slope (click and drag the wedge downwards with the mouse), you can see the three sliding joint planes. including the basal joint at the bottom of the wedge.

Slide the wedge
Slide the wedge
The wedge can be moved DOWN the slope by clicking and dragging with the mouse, but it cannot be moved UP the line of intersection due to the differing wedge geometry compared to tetrahedral wedges (which can be moved up or down).

3.2 INPUT DATA

Next, we'll set up the properties of the Basal Joint through the Input Data dialog. To open the dialog:

  1. Select: Analysis > Input Data input data
  2. Select the Basal Plane tab.
    Input Data dialog - Deterministic Input Data
    Input Data dialog - Deterministic Input Data
  3. Experiment with entering different orientations for the Basal Joint plane and observe the variety of wedge shapes that can be formed. For example, if you enter Dip = 44 / Dip Direction = 180, you should see the wedge shown in the figure below.
Input Data dialog dip direction
Input Data dialog dip direction

If you slide the wedge out of the slope, you can see that the basal plane, for this orientation, daylights in the upper face and front face of the slope, leading to a primarily planar wedge shape.

Input Data dialog planar wedge shape
Input Data dialog planar wedge shape

In general, when you include a basal plane in the analysis (Block Shape = Basal Joint), a much wider variety of wedge shapes can be analyzed compared to the tetrahedral wedge option (Block Shape = Wedge.

4.0 Notes about Basal Joint Analysis

Most of the SWedge features and analysis options that are applicable to tetrahedral wedges can be used with Basal Joint wedges and operate in the same manner. These include:

  • Tension Cracks
  • Probabilistic Analysis
  • Combination Analysis
  • Scale Wedges
  • Support
  • Water Pressure

However, certain options are NOT available for Basal Joint wedges. For example:

  • The Bench Design option cannot be used with Basal Joint wedges and is applicable only to tetrahedral wedges
  • If a Tension Crack is included (through the Input Data Slope tab), you must specify its location. The Minimum FS Location and Use Bench Width to Maximize options are not available.

4.1 BENCH WIDTH AND SLOPE LENGTH

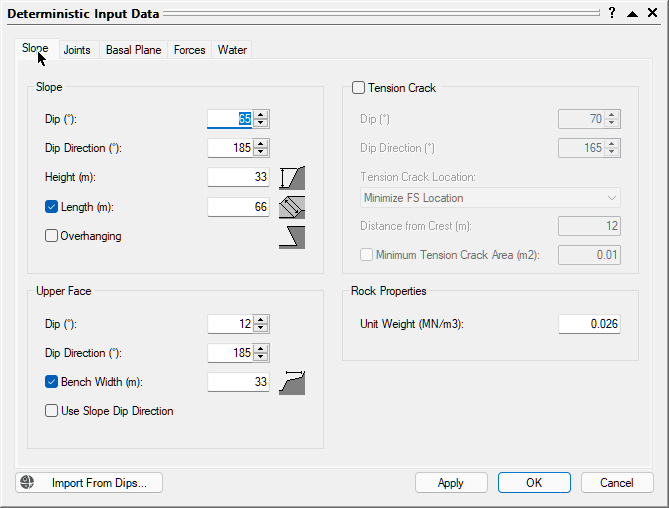

For Basal Joint wedges, the Slope Length and Bench Width options are always automatically enabled in the Input Data Slope tab, as shown in the figure below. They cannot be turned off.

Bench width Slope length
Bench width Slope length

The reason for this is not obvious and is as follows. If you DO NOT specify constraints for the Bench Width and/or Slope Length, wedges with a basal joint tend to infinite size in the bench width or slope length directions. To overcome this problem, we automatically apply these constraints.

This is a rather non-intuitive but important aspect of Basal Joint analysis. The Bench Width and Slope Length constraints are ALWAYS ENABLED. In general, it may be necessary for you to customize the values of parameters in order to obtain the desired analysis results.

You don't necessarily need both constraints and only one may be sufficient in order to constrain the wedge size from becoming infinite. However, since we don't know in advance which constraint is required, SWedge automatically applies both all of the time. Remember, you can always increase the values of either one to obtain the desired result if the default values are too small.

4.2 SOCKET WEDGES

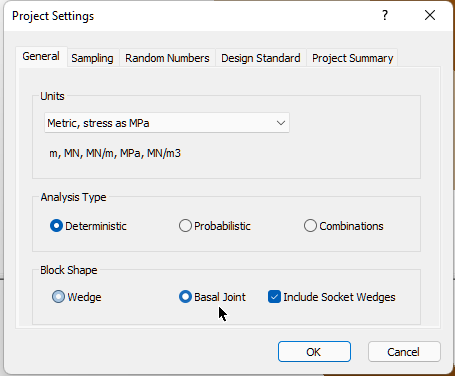

  1. Return to the General tab Project Settings dialog and notice the Include Socket Wedges check box next to the Basal Joint option.
Include Socket Wedges check box proj settings
Include Socket Wedges check box proj settings

When you analyze wedges with a Basal Joint, a variety of complex wedge shapes can potentially be generated. One of these wedge types is referred to as a Socket Wedge, which is defined as a removable wedge that does not intersect the crest of the slope. One example is shown in the figure below.

Socket Wedges slope crest
Socket Wedges slope crest

This example is a simple tetrahedral wedge formed by Joint 1, Joint 2, and the Basal Joint, forming a wedge that can be removed from the front of the slope. Since the wedge does not intersect the crest of the slope, it is referred to as a Socket Wedge (i.e., the wedge occupies a socket in the slope).

Other more complicated shapes can be generated. One is the example shown in the figure below, which daylights in both the slope face and the upper face, but does not intersect the crest. You can find additional examples of complex web shapes in the SWedge Examples > Basal Joint Wedges folder.

Socket Wedges basal joint wedges
Socket Wedges basal joint wedges

By default, SWedge computes and analyzes Socket Wedges if you are using the Basal Joint option. If you do not wish to consider these types of wedges, turn off the Include Socket Wedges check box in the Project Settings General tab. In this case, any Socket Wedges that are generated are reduced in size until they intersect the crest, at which point they are no longer technically Socket Wedges.

For a summary of all possible wedge shapes that can be generated by a Basal Joint analysis, see Basal Joint Wedge Types in SWedge Theory Documents.

This concludes the tutorial.
