RocTunnel3

3D Rock Stability Analysis for Underground Excavations

Determines valid block formations by intersecting joints in 3D space and calculates the factor of safety for each block using the 3D limit equilibrium method.

Free Trial

RocTunnel3

3D Rock Stability Analysis for Underground Excavations

Free Trial

Deterministic and Probabilistic Block Stability Analysis

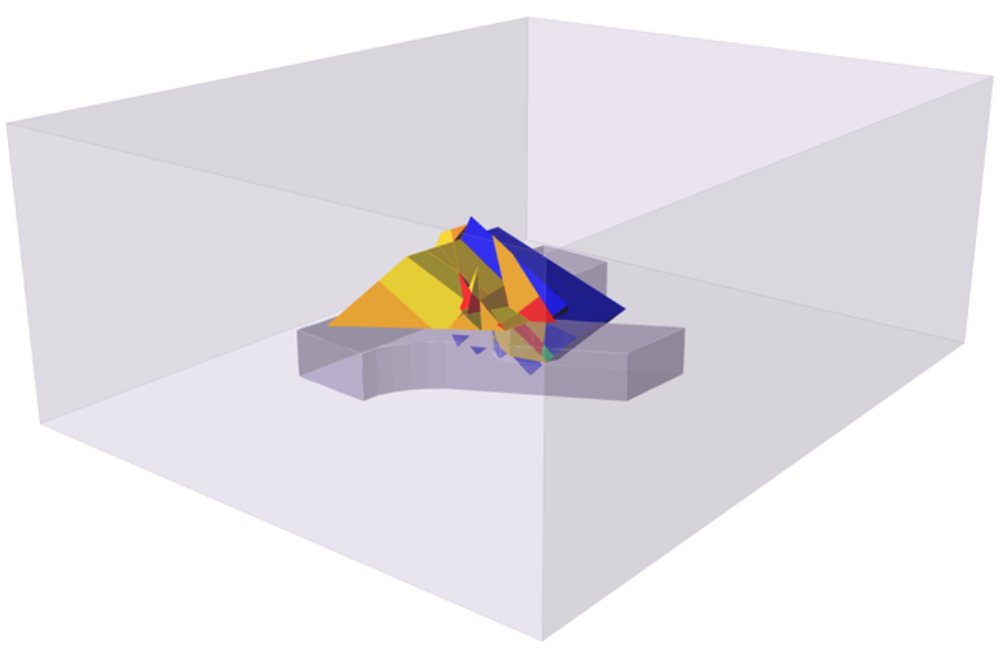

Find valid block formations by intersecting joints and calculate the factor of safety in deterministic analysis. You can sample rock unit weights, joint shear strength, and water pressure across simulations to calculate block failure probability.

RocTunnel3
RocTunnel3

Deterministic and Probabilistic Block Stability Analysis

Find valid block formations by intersecting joints and calculate the factor of safety in deterministic analysis. You can sample rock unit weights, joint shear strength, and water pressure across simulations to calculate block failure probability.

RocTunnel3

Staged Excavation and Support Design

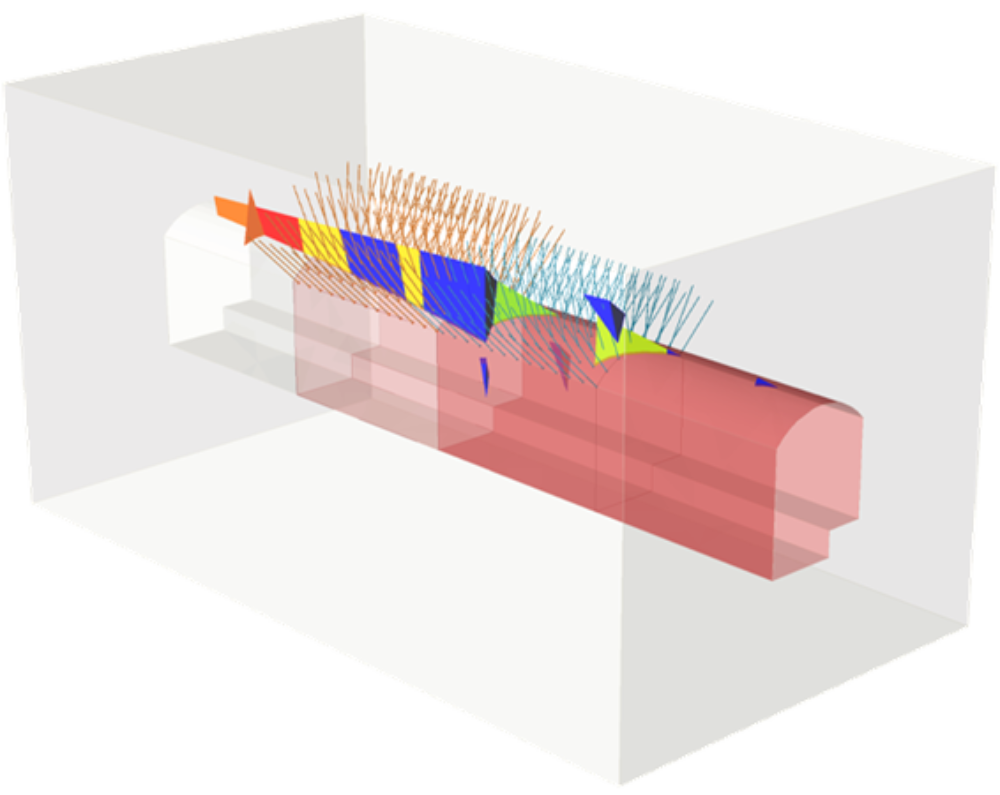

Analyze block stability and the required support pressure and support depth in every construction stage for meeting a user specified design target. Design shotcrete, support pressures, and bolts in stages to address the challenges of structurally controlled failures underground.

RocTunnel3

Staged Excavation and Support Design

Analyze block stability and the required support pressure and support depth in every construction stage for meeting a user specified design target. Design shotcrete, support pressures, and bolts in stages to address the challenges of structurally controlled failures underground.

3D Geological Structures

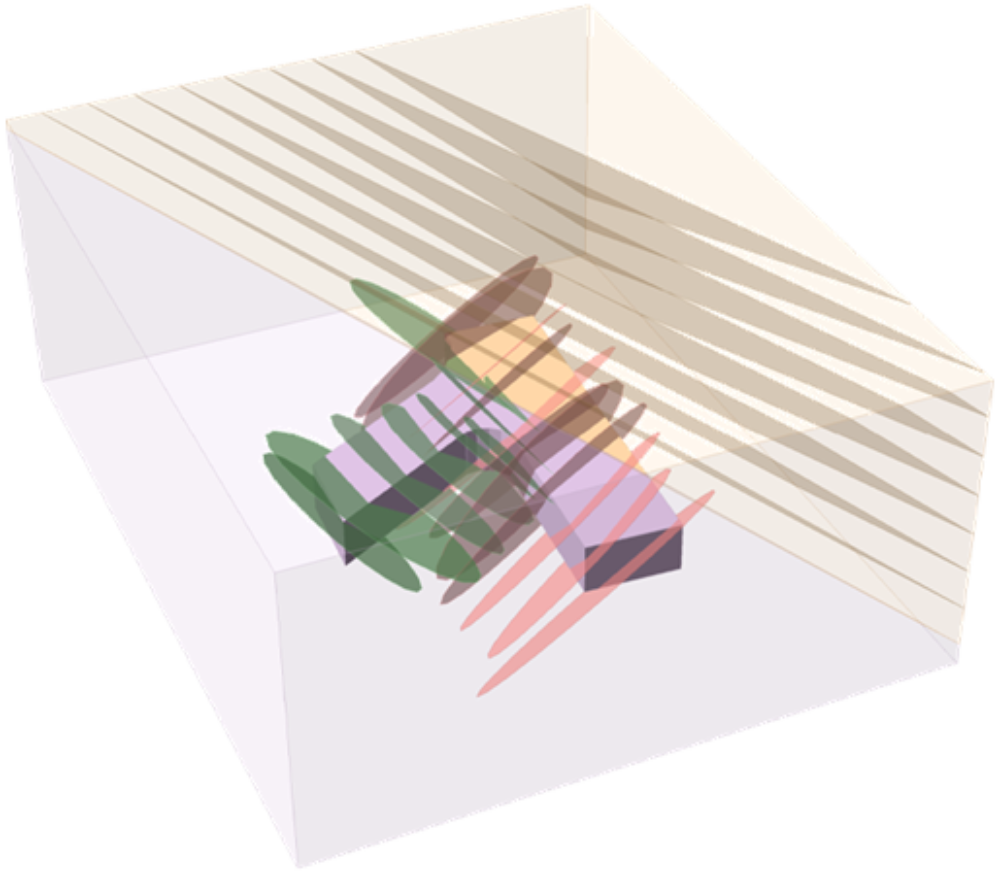

Model realistic 3D underground excavations in complex geological domain and structurally controlled failures in rock. Easily import and update geometry and joint field data, and you can export geometries of the excavation, blocks, and block failure information.

RocTunnel3
RocTunnel3

3D Geological Structures

Model realistic 3D underground excavations in complex geological domain and structurally controlled failures in rock. Easily import and update geometry and joint field data, and you can export geometries of the excavation, blocks, and block failure information.

Check out the full list of technical features in RocTunnel3

See Specs

RocTunnel3 Across Applications

  • Underground Mining
  • Tunnels
  • Underground Facilities

Underground Mining

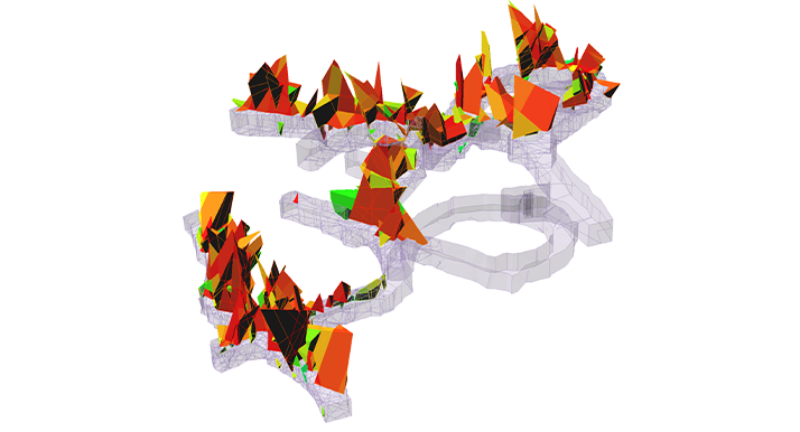

Locate and assess block failures at multiple scales after blasting. You can characterize block failures from natural and excavation-induced joint sets, analyze required support capacities, and design your reinforcements.

Underground Mining

Tunnels

Assess and locate block failures in staged construction, design liners, and reinforcements for safe operations.

Tunnels

Underground Facilities

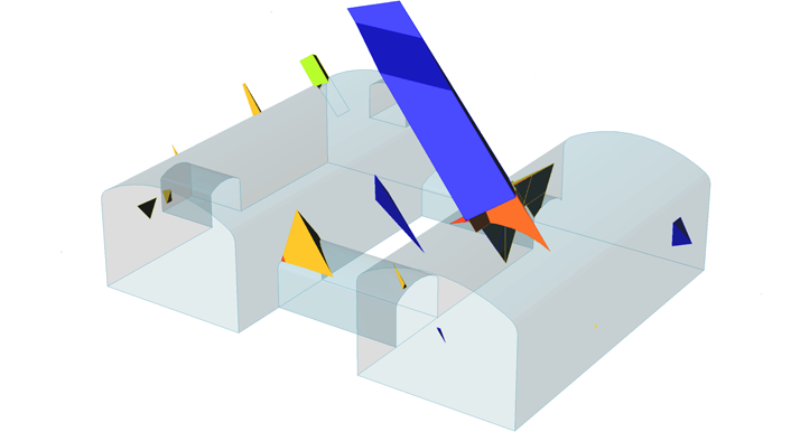

Assess the geologic hazards of underground energy and storage facilities, including seismic loading in complex geological domains.

Easily update your model with new survey data and perform probabilistic block stability analyses for safe long-term operations.

Underground Facilities

RocTunnel3 Seamlessly Integrates With

  • Dips
  • UnWedge

+

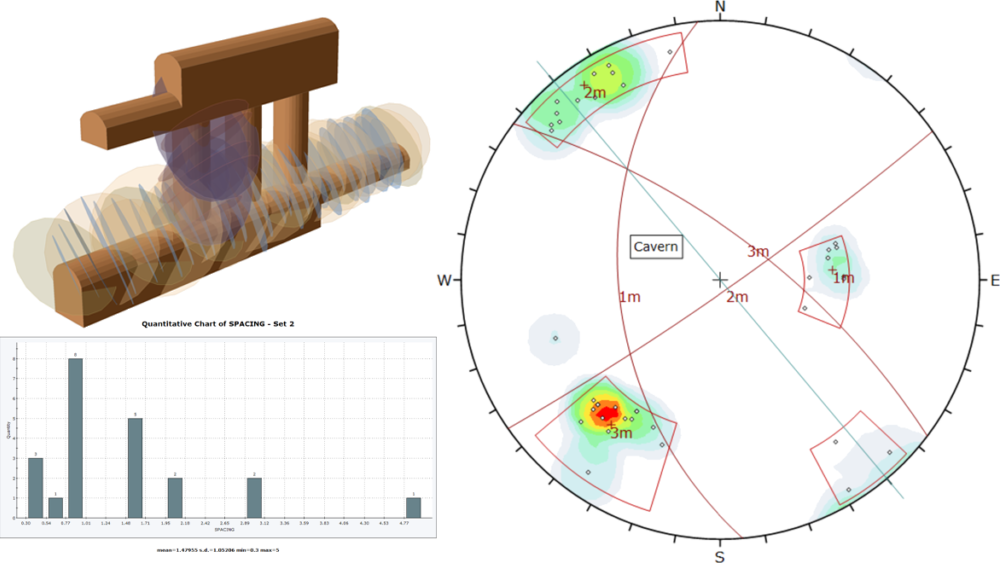

Import joint locations and orientation data including set statistics from Dips. For mapped joints, you can import the orientation and location of each defect.

When boreholes or scanlines are available, analyze joint set statistics in Dips, then import the mean dip, dip direction, and Fisher K to define synthetic joint sets in RocTunnel3.

RocTunnel3

+

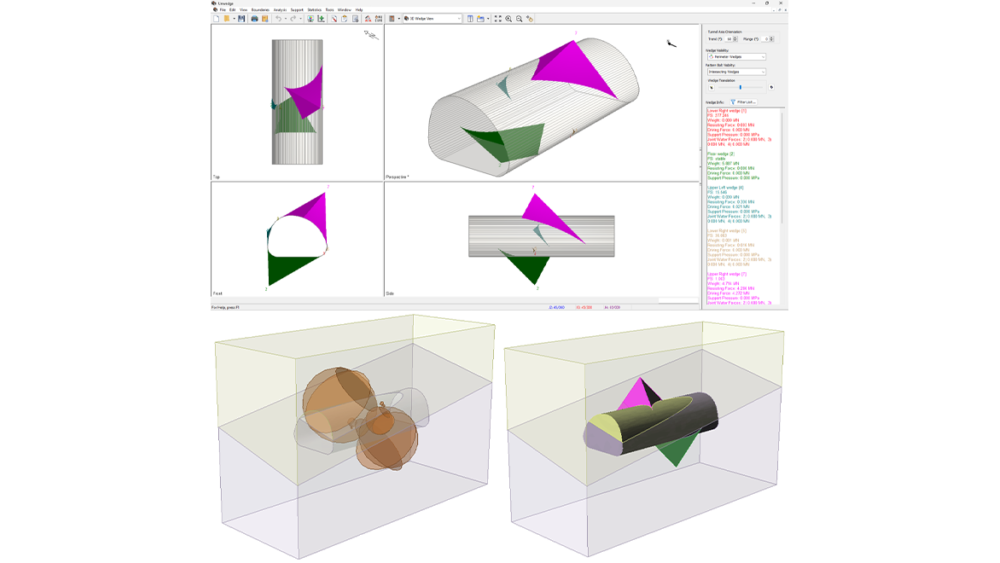

Import model geometry, properties, and joints from UnWedge to fully define your model.

RocTunnel3

The Latest Features

  • Borehole Manager

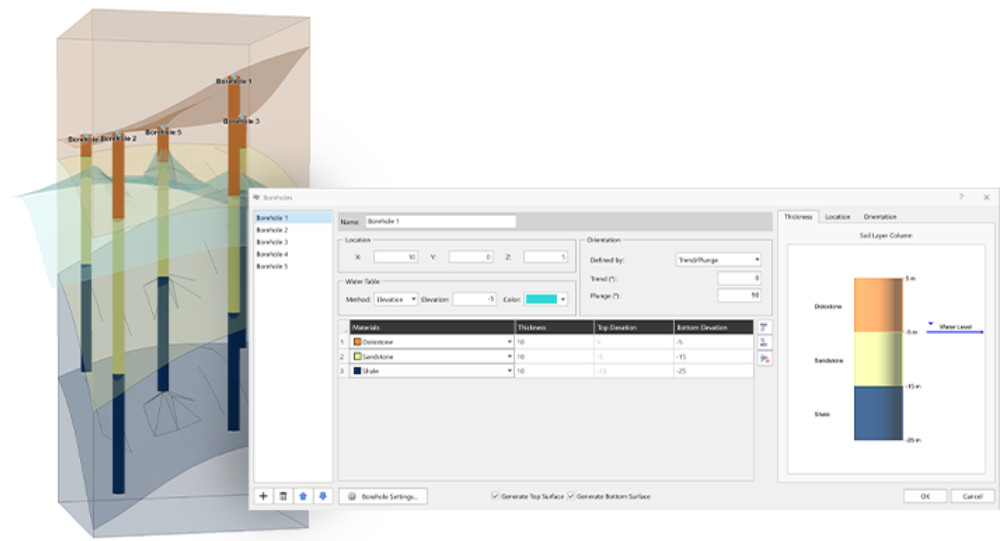

    Easily construct complex stratigraphy and groundwater tables using the built-in borehole manager and locational borehole data. Various interpolation methods are available to best represent field conditions.

  • Support Design

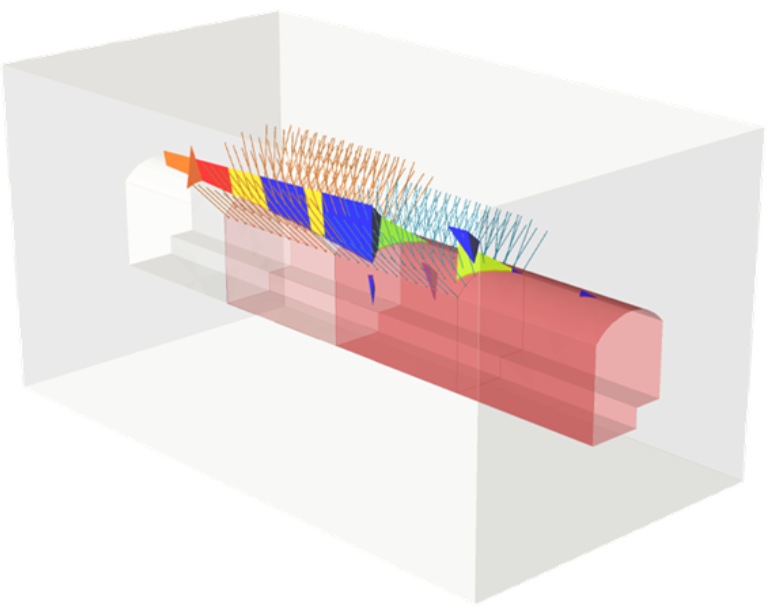

    Apply and remove bolts, shotcrete, and support pressures in stages, and assess required support capacities and extents for every construction stage.

    Various bolt types are available, and you can easily view critical bolts and force diagrams and apply design standards or design factors of safety.

  • Key Block Analysis

    Identify key blocks that control large failure extents and simulate the successive unravelling of the excavation as key blocks are detached.

Borehole Manager
Support Design
Key Block Analysis
