RSWall

Retaining Wall Design Software

Evaluates the stability of retaining walls to ensure they stand the test of time.

Free Trial

RSWall

Retaining Wall Design Software

Free Trial

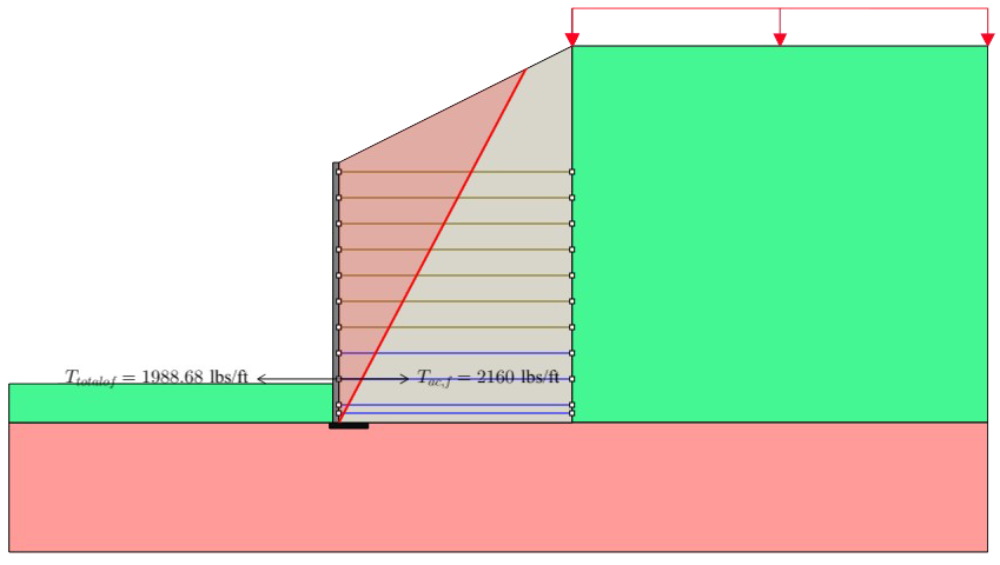

Comprehensive Retaining Wall Analysis

Evaluate the stability of MSE, segmental, gravity, gabion, cantilever walls and abutments, using AASHTO, Eurocode, British Standards and AS 4678. Assess sliding, overturning, bearing capacity, and internal stability using industry-recognized methods.

RSWall
RSWall

Comprehensive Retaining Wall Analysis

Evaluate the stability of MSE, segmental, gravity, gabion, cantilever walls and abutments, using AASHTO, Eurocode, British Standards and AS 4678. Assess sliding, overturning, bearing capacity, and internal stability using industry-recognized methods.

RSWall

Analyze Multiple Walls or a Single Critical Section

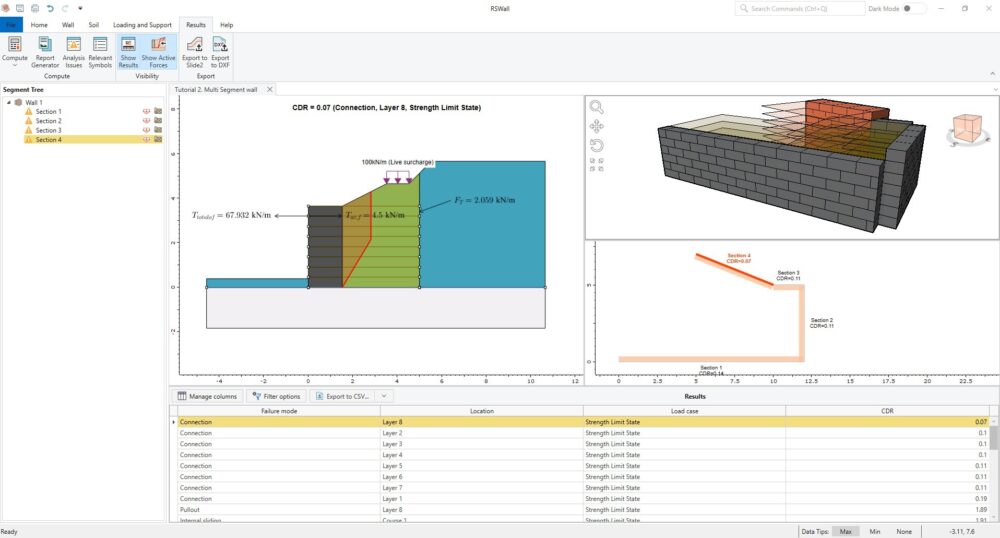

Design multiple wall sections in one file or focus on a single section, so you can easily manage complex projects while ensuring accurate and efficient stability assessments.

RSWall

Analyze Multiple Walls or a Single Critical Section

Design multiple wall sections in one file or focus on a single section, so you can easily manage complex projects while ensuring accurate and efficient stability assessments.

Clear, Actionable Analysis Results

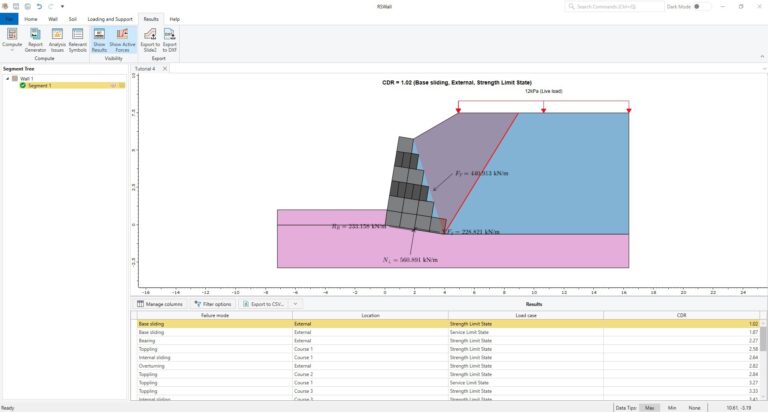

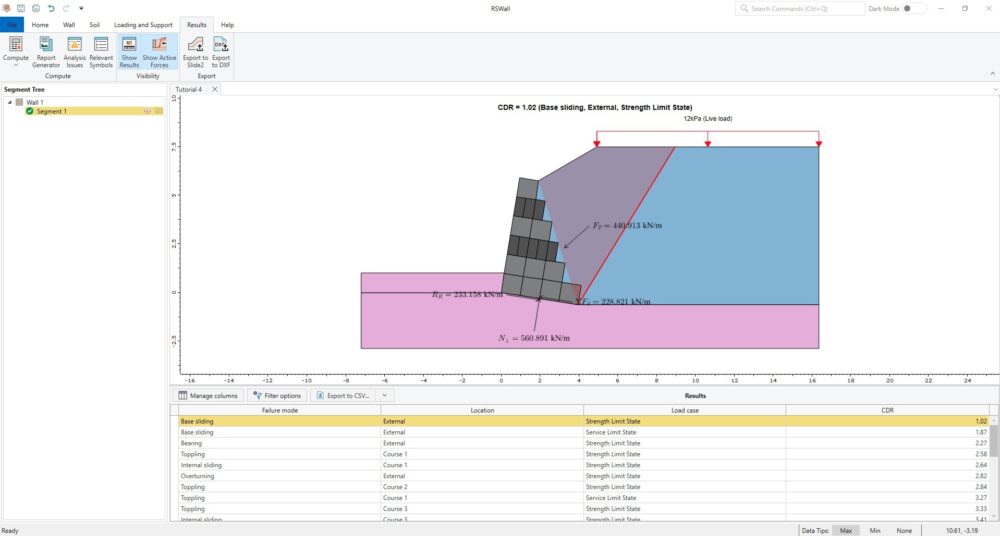

View stability results for multiple failure types in an easy-to-navigate format. Compare methodologies, review key calculations, and confidently make informed design decisions.

RSWall
RSWall

Clear, Actionable Analysis Results

View stability results for multiple failure types in an easy-to-navigate format. Compare methodologies, review key calculations, and confidently make informed design decisions.

Check out the full list of technical features in RSWall

RSWall Across Applications

  • Highways
  • Bridges
  • Foundations and Basements
  • Architecture and Construction

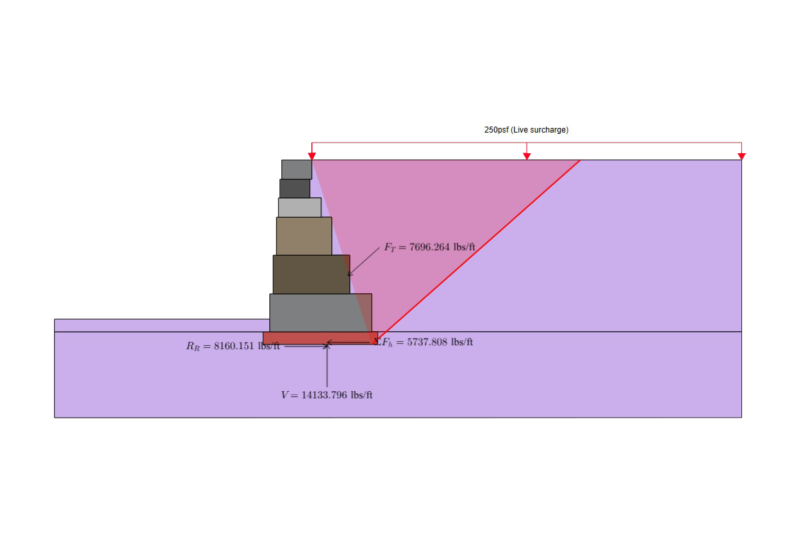

Highways

Ensure stable embankments and cut slopes along highways by designing retaining walls that prevent soil movement and erosion. Analyze walls under varying traffic loads and site conditions for long-term performance.

Highways

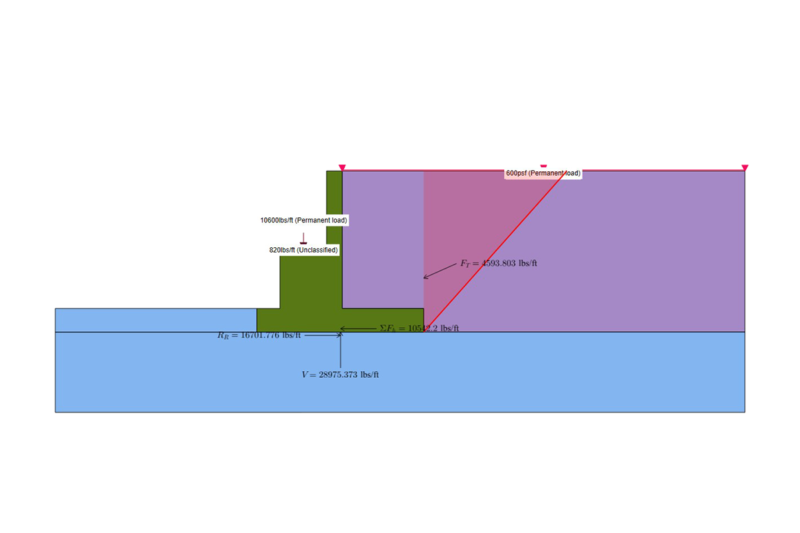

Bridges

Support bridge abutments with reliable retaining wall designs that resist lateral earth pressures and settlement. Evaluate reinforced and gravity walls for enhanced structural integrity.

Bridges

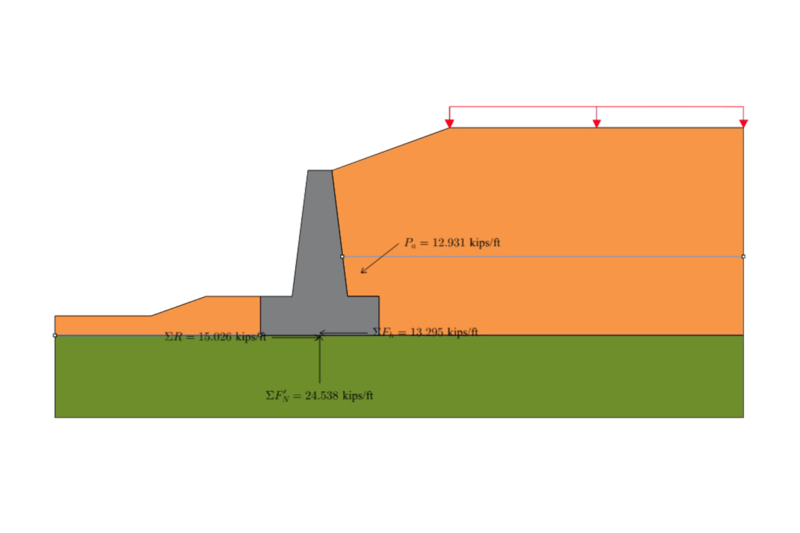

Foundations and Basements

Reinforce below-grade structures with retaining walls that prevent soil pressure from compromising foundation stability. Optimize wall design for support and long-term durability.

Foundations and Basements

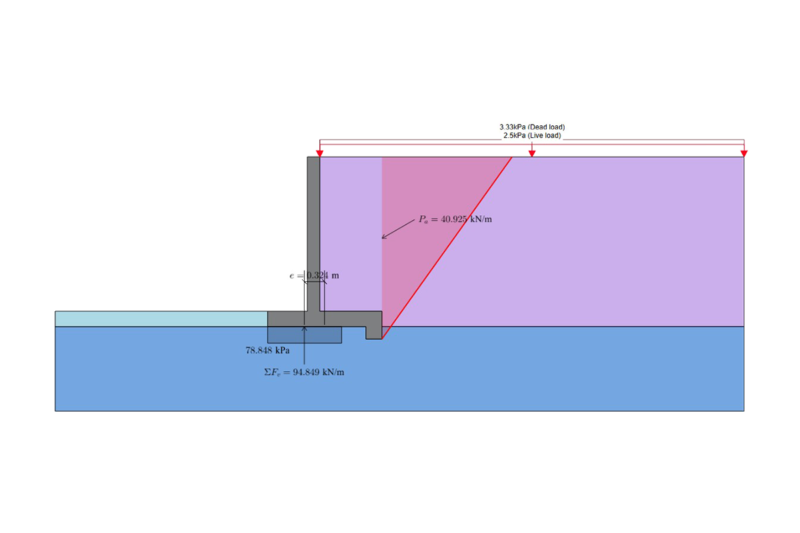

Architecture and Construction

Integrate retaining walls into site development projects to manage elevation changes, soil retention, and load-bearing capacity, so you can better adapt designs to diverse geotechnical conditions.

Architecture and Construction

RSWall Seamlessly Integrates With

  • Slide2

+

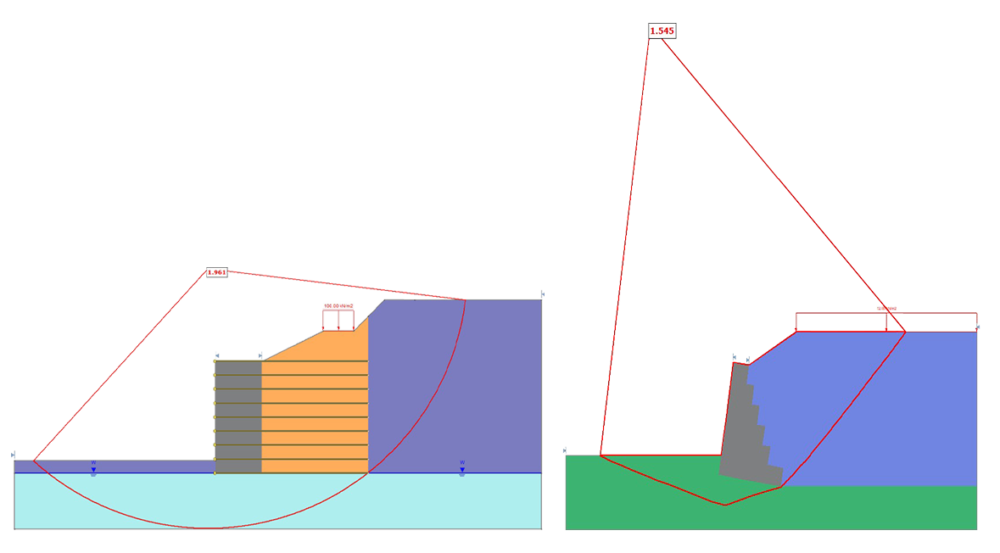

Seamlessly integrate with Slide2 to evaluate overall slope stability using the limit equilibrium method. Ensure your retaining walls perform reliably within their geotechnical environment.

RSWall

The Latest Features

  • Report Generator

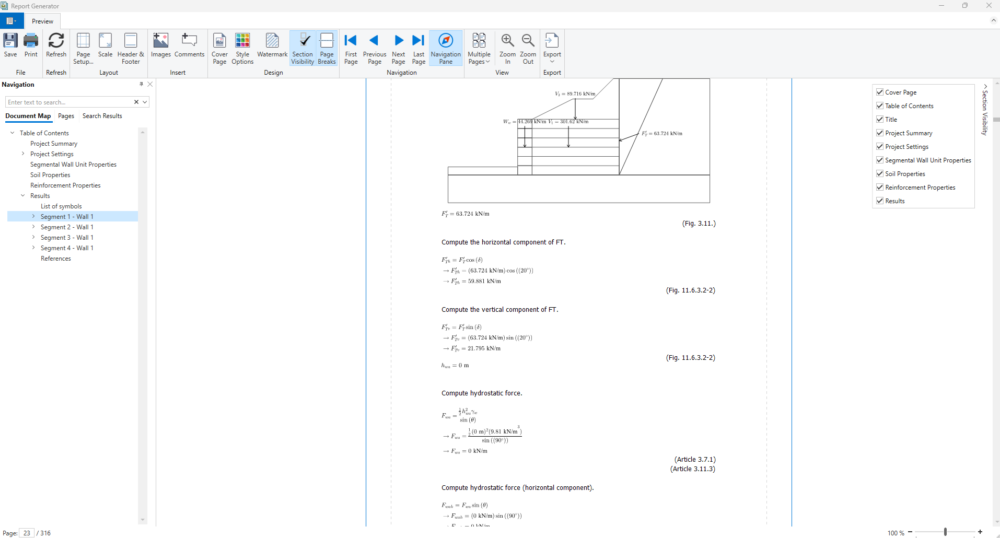

    Produce a detailed equation report that shows the hand calculations used for the entire analysis of each wall section in the model. Reports are automatically generated whenever results are present, providing clear, step-by-step verification.

  • Wall Wizard

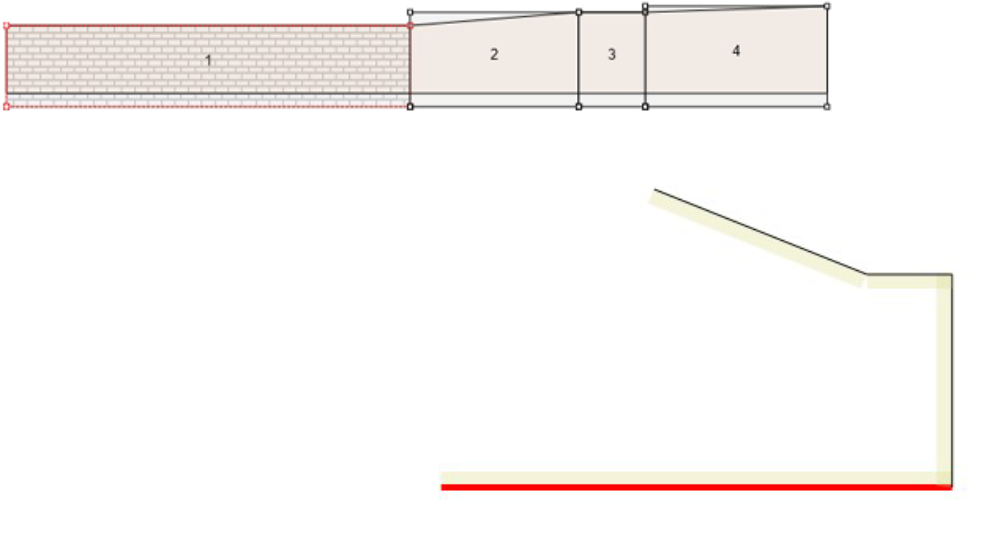

    Quickly generate multiple wall segments that match your specified excavation soil profile. Simply define the plan geometry, set constraints like embedment and segment length, and review the auto-generated wall layout. Usable for segmental and gabion walls, the Wall Wizard streamlines complex designs in just three steps.

  • Support for Global Design Standards

    Analyze retaining walls with confidence using widely adopted design standards, including AASHTO (FHWA), NCMA, Eurocode, British Standard, and AS 4678. For more flexibility, add your own user-defined standards to meet project-specific requirements.

Report Generator
Wall Wizard
Support for Global Design Standards

Grow With Our Learning Resources

Explore our Learning Resources and User Guides, designed to help you excel with all of your geotechnical projects, whether you are a practicing engineer, an academic or a student.
Web introducing rswall
article

Introducing RSWall: The Comprehensive Retaining Wall Design Software

Read: 2 minutes
RS Insight Website Thumbnail v11
article

RSInsight: Redefining Geotechnical Support With Artificial Intelligence

Read: 3 minutes

RSWall

Get RSWall today. Choose your license below:

Personal Lease

USD / year
  • One Seat
  • One User Device
  • Cloud-Hosted Licensing
  • Managed in the RocPortal

Flexible Lease

USD / year
  • Multiple Seats
  • 5 User Devices Per Seat
  • Cloud-Hosted Licensing
  • Managed in the RocPortal
If you’re interested in hosting your flexible lease licenses on a local server, contact us.
Have questions about our pricing structure? View Plans & Pricing FAQ
